Designed for exceptional measurement accuracy, this water meter provides agricultural producers with a reliable way to track their animals’ daily water consumption.
The high‑precision ultrasonic water meter surpasses the performance of a conventional meter. It quickly identifies changes in water consumption that may signal leaks or other issues in your water supply system.
The MAXIMUS ultrasonic water meter quickly identifies unexpected increases in water usage helping you detect leaks or equipment issues. This advanced technology reduces water loss and supports efficient farm operation.
As a livestock water meter, the solution provides monitoring of your animals’ daily water consumption. Sudden changes in usage can indicate stress or illness. This way, it allows you to act quickly to protect the health of your flock or herd.
By leveraging accurate data from your water monitoring system, you can optimize water distribution across barns or greenhouses. This ensures that every animal gets the right amount of water, improving performance, reducing costs, and avoiding waste.
When connected to the MAXIMUS controller, the ultrasonic water meter records real-time data to support confident production management.

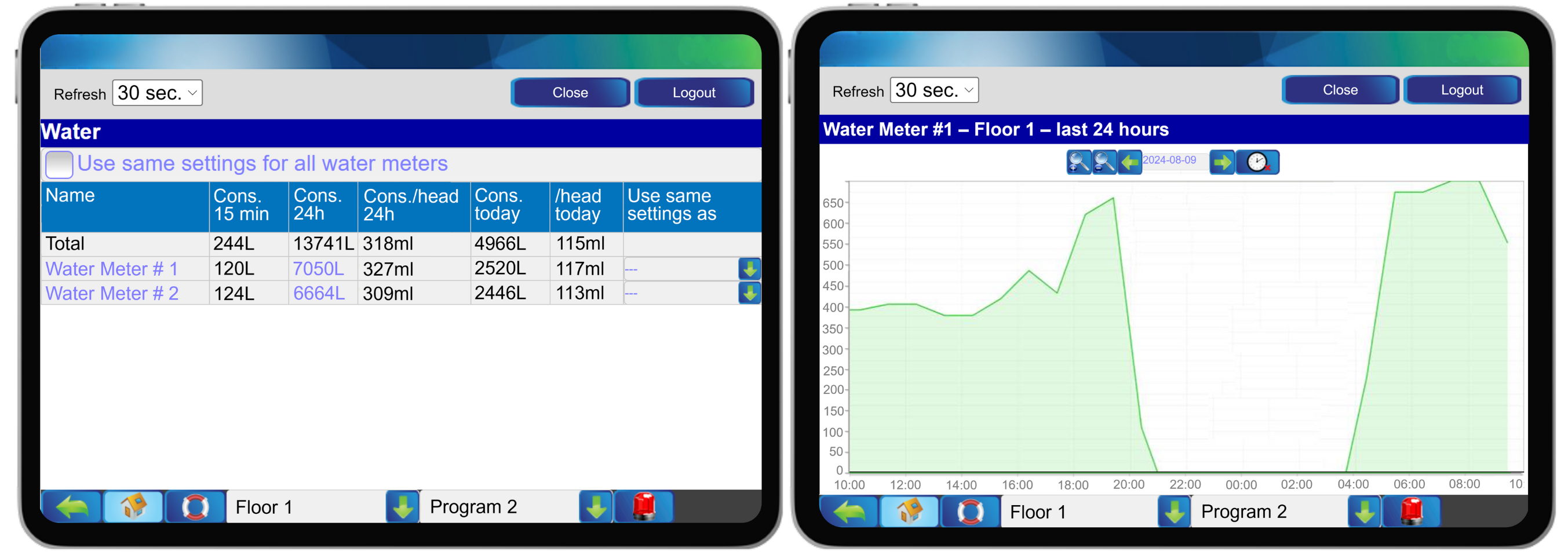

Figure 1: The screen displays various consumption values for each of the water meters monitoring the consumption of 20,000 birds.
Figure 2: This graph shows the bird water consumption in the last 24 hours. The downward slope corresponds to the moment when the lights were turned off, while the upward slope corresponds to the moment when the lights were turned on.
Liters
Product code | Pipe Diameter | Minimal Flow Rate – Q1 (m3/h) | Nominal Flow Rate – Q3 (m3/h) |
6000-0031 | DN15 | 0.01 | 2.5 |
6000-0032 | DN20 | 0.016 | 4 |
6000-0033 | DN25 | 0.025 | 6.3 |
6000-0034 | DN40 | 0.064 | 16 |
Gallons
Product code | Pipe Diameter | Minimal Flow Rate – Q1 (gal/h) | Nominal Flow Rate – Q3 (gal/h) |
6000-0035 | ½'' | 2.64 | 660 |
6000-0036 | ¾'’ | 4.22 | 1057 |
6000-0037 | 1'' | 6.60 | 1664 |
6000-0038 | 1½'' | 16.90 | 4 227 |
