Wireless Water Meter

Water is one of the most vital resources in agriculture that directly impacts crop yields, livestock health, and overall farm productivity.

Wireless water meters* are advanced devices that measure water flow and volume with high precision. Typically installed on main water lines, irrigation systems, or near livestock tanks, these sensors provide real-time data on water use.

Make Every Drop Count – Choose Smart Monitoring

When connected to our MAXIMUS View monitoring system, these devices transmit data wirelessly and enable producers to monitor water consumption remotely and accurately. A simple tool to empower better decision-making and more efficient resource management.

Leak Detection and Maintenance
Sudden spikes in water use can indicate leaks in underground pipes or malfunctioning valves. Thanks to the wireless sensors, you are immediately alerted, preventing water loss and costly repairs.

Water Consumption
Ensuring consistent water supply for livestock is critical. Sensors can monitor flow rates, alerting you if animals are not drinking enough or if a supply line is blocked.

Data Logging – Many regions now require farms to report water consumption. MAXIMUS View automatically logs up to 30 days of historical data that can be sent by email in a .csv file, making it easy to generate reports for regulatory compliance

Alerts directly on your app – Be the first one to know when something goes wrong so you can act fast.

Remote Access – Monitor water flow anytime, anywhere via the MAXIMUS View application.

*This device is exclusively compatible with the MAXIMUS View gateway.

  • Real-Time Monitoring
  • Water Use Efficiency
  • Cost Savings
  • Easy Setup
  • LoRaWAN® v1.0.3 Class A protocol
  • Bands: US915/EU868/AU915
  • Ultra-low power consumption
  • Uplink on periodically and open/close events
  • Downlink to change configure
  • 8500mAh Li/SOCl2 Battery
  • One-year warranty
Common DC Characteristics:
  • Supply Voltage: Built-in Battery, 2.5v ~ 3.6v
  • Operating Temperature: -40 ~ 85 °C (-104 ~ 185°F)

LoRaWAN® Spec:

  • Frequency Range, Band 1 (HF): 862 ~ 1020 MHz
  • Max +22 dBm constant RF output vs.
  • RX sensitivity: down to -139 dBm.
  • Excellent blocking immunity

Battery:

  • Li-SOCI2 non-rechargeable battery
  • Capacity: 8500 mAh
  • Self-Discharge: <1%/Year @ 25 °C (77°F)
  • Max continuously current: 130 mA
  • Max boost current: 2A, 1 second

Power Consumption:

  • Sleep Mode: 5uA @ 3.3v
  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Take control of your water consumption! Improve your operation with wireless water monitoring, designed for farms and greenhouses that value precision, efficiency, and sustainability.

Band US915

Product Number

Water meter, diameter

Pulses

7100-0026

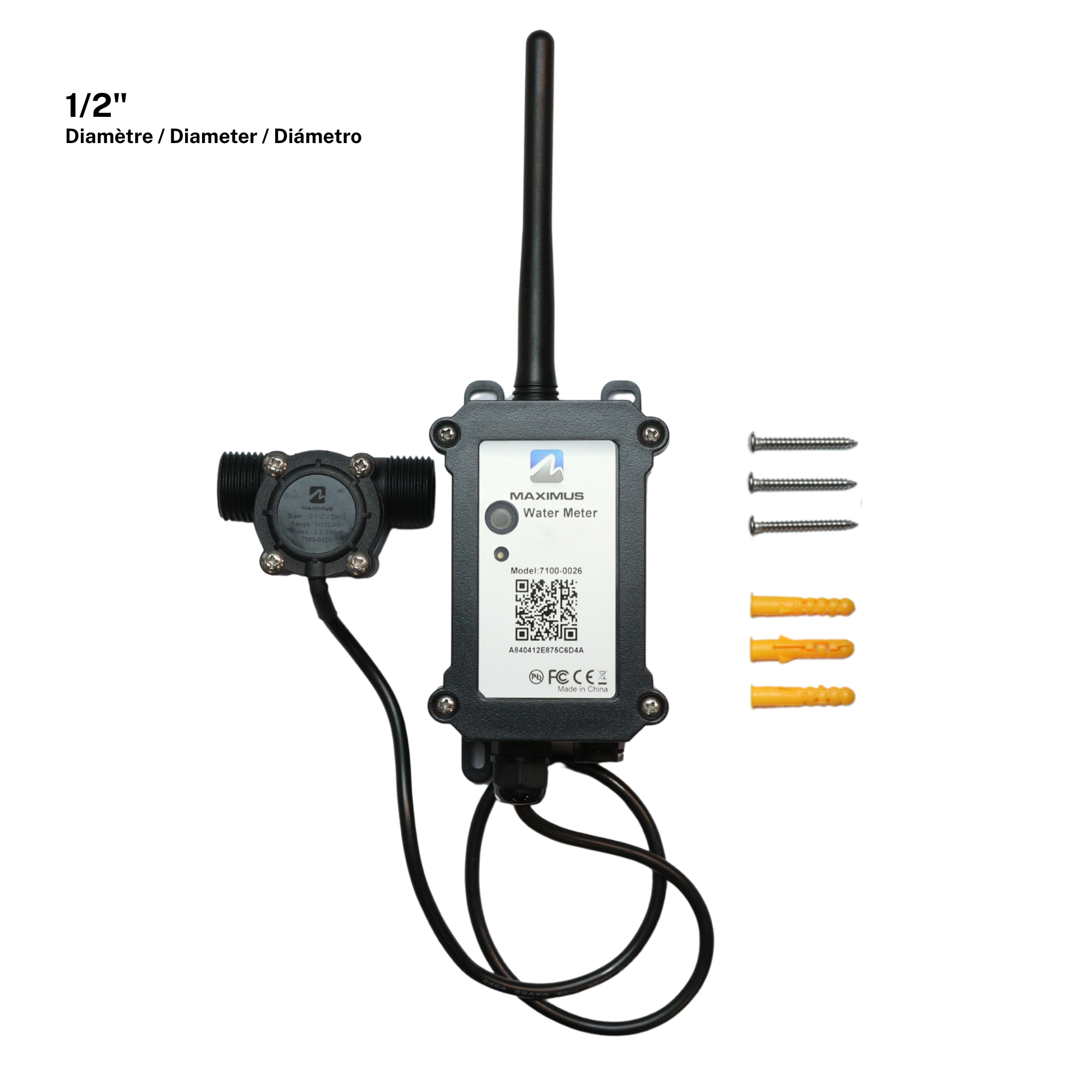

G1/2”/DN15

450 pulses = 1 L (1700 pulses = 1 gal)

7100-0027

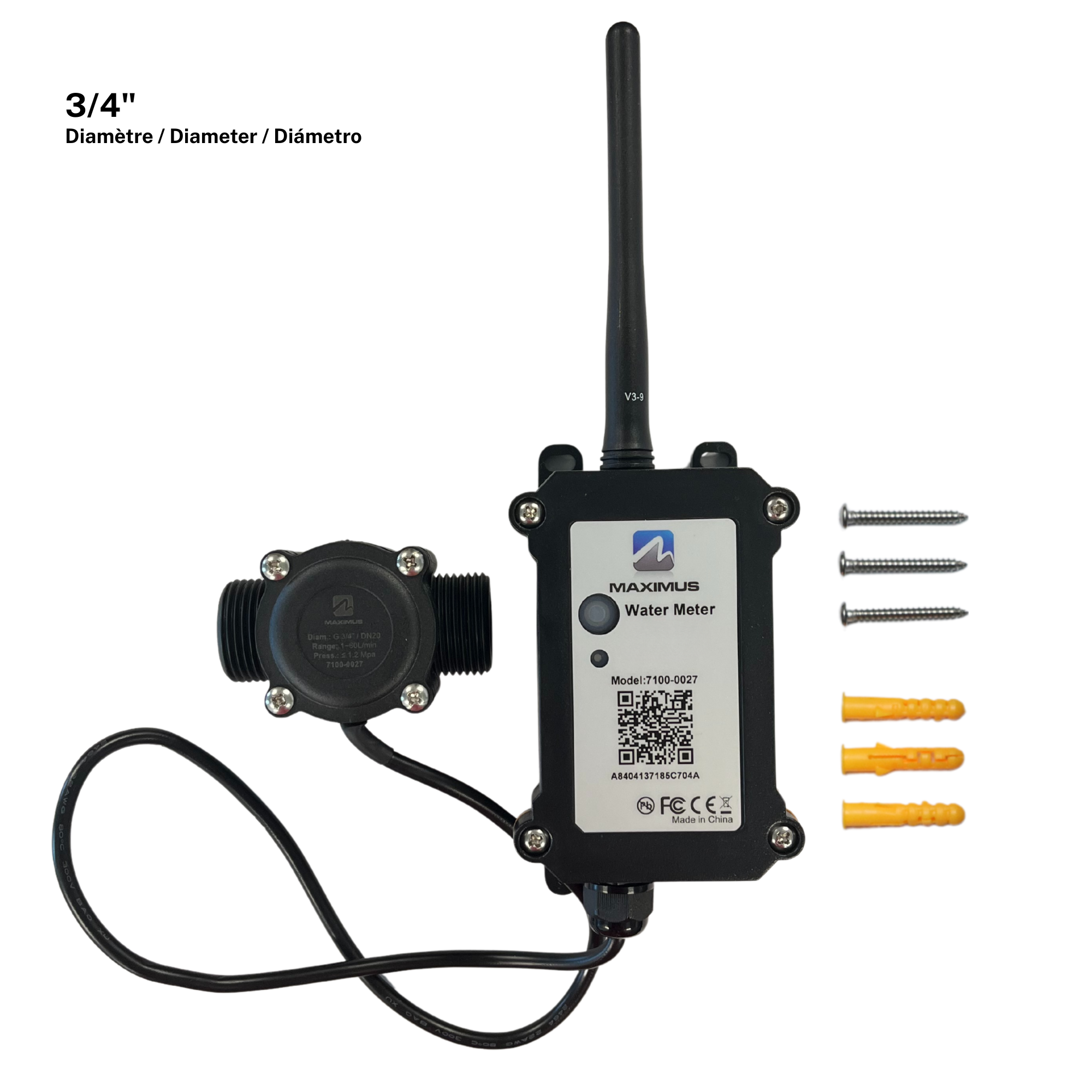

G3/4”/DN20

390 pulses = 1 L (1475 pulses = 1 gal)

7100-0028

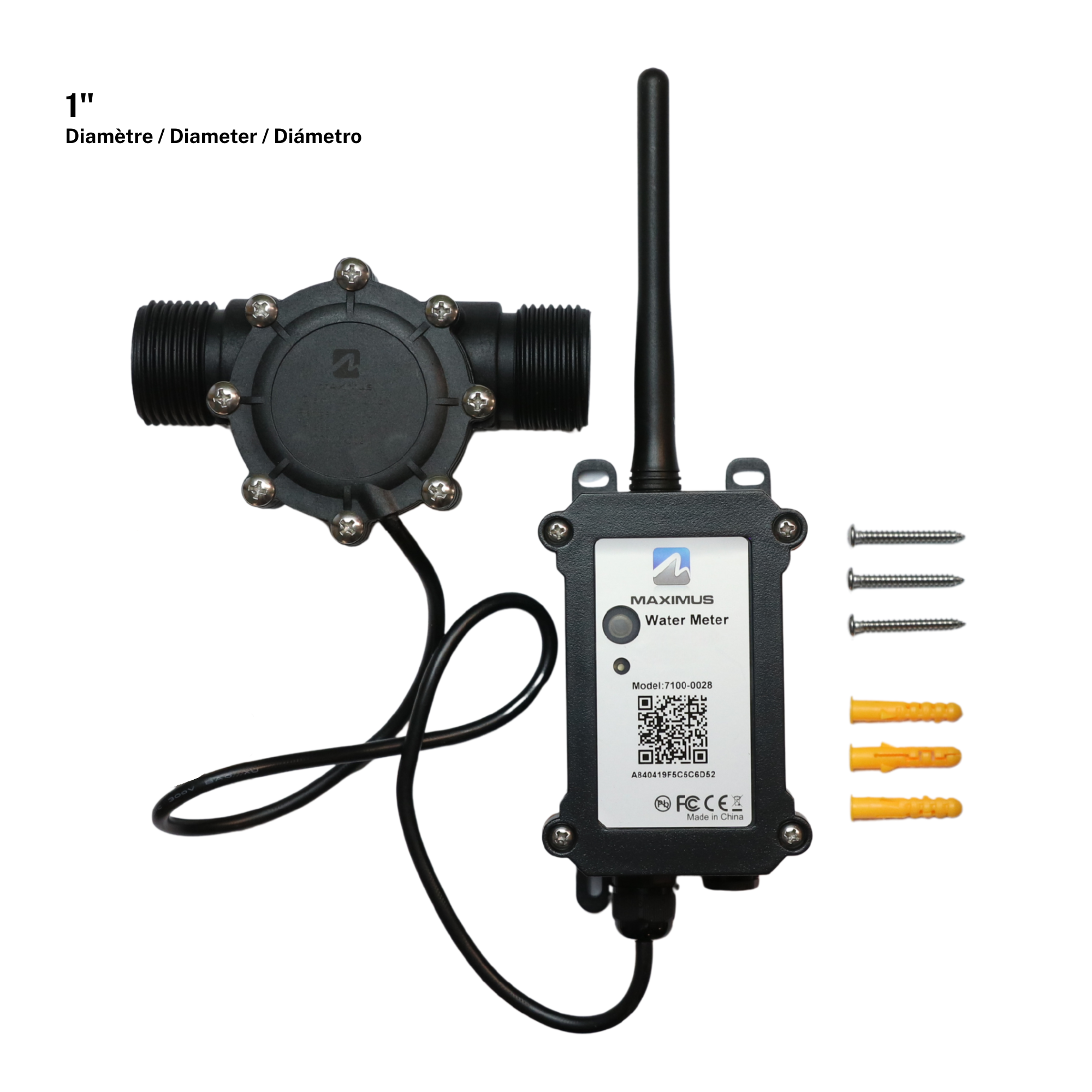

G1”/DN25

64 pulses = 1 L (242 pulses = 1 gal)

7100-0029

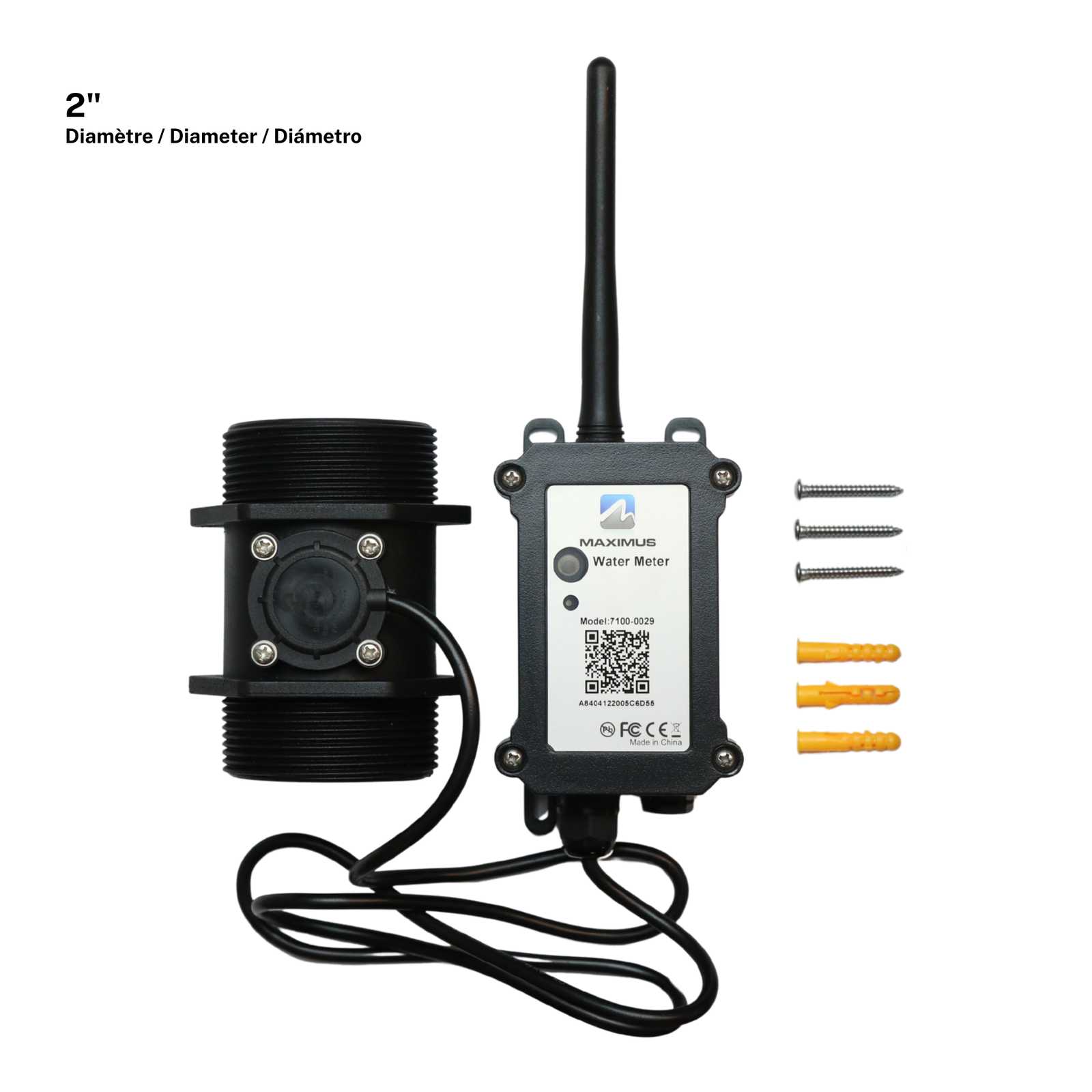

G2”/DN50

12 pulses = 1 L (45 pulses = 1 gal)



Band EU868

Product Number

Water meter, diameter

Pulses

7100-0032

G1/2”/DN15

450 pulses = 1 L

7100-0033

G3/4”/DN20

390 pulses = 1 L

7100-0034

G1”/DN25

64 pulses = 1 L

7100-0035

G2”/DN50

12 pulses = 1 L



Band AU915

Product Number

Water meter, diameter

Pulses

7100-0038

G1/2”/DN15

450 pulses = 1 L

7100-0039

G3/4”/DN20

390 pulses = 1 L

7100-0040

G1”/DN25

64 pulses = 1 L

7100-0041

G2”/DN50

12 pulses = 1 L
