MAXIMUS Prevention for MAXIMUS View Premium

An Electrical Network Monitoring Solution Combining Wired and Wireless Devices



Maximus View Premium enables the addition of a MAXIMUS Prevention module designed to quickly detect anomalies in your electrical panels.

Thanks to the Modbus technology integrated into the Maximus View Premium gateway, the system continuously analyzes data collected through sensors, comparing room temperature with your electrical panel temperature to identify abnormal conditions before they become critical. In addition, it detects leakage currents caused by equipment-related issues or faults in the electrical installation. When connected to MAXIMUS View Premium, a MAXIMUS Prevention module can monitor up to 4 electrical panels.

Maximus View Premium: Focused Monitoring Without Complexity

With its Premium option, this solution is ideal for businesses looking for simple, effective, and affordable monitoring of their electrical network.

It also enables the use of wired and wireless sensors to monitor other parameters, such as humidity, CO₂ levels, pressure, and water quality, according to the specific needs of your facilities.

----

For even more comprehensive protection that includes equipment control, operational automation, and facility-wide monitoring, discover our MAXIMUS Prevention Controller Solution.

Quick Installation

Simple installation by a certified electrician, with no major modifications required to your infrastructure.

Continuous Monitoring

24/7 monitoring of your electrical network to quickly detect anomalies and help reduce the risk of electrical failures.

Proactive Anomaly Detection

Customizable thresholds help identify temperature variations before they become problematic.

Instant Notifications - No intermediaries involved

Receive real-time alerts through your mobile app or by email. The platform reduces communication delays and enables faster response times.

User-Friendly Mobile App

Access your data remotely through a simple and intuitive interface to monitor the status of your electrical network.

No Monthly Fees

Free updates available through the mobile app.

Certification

A certificate is issued following the inspection to confirm that the system is operating properly.

Mobile Application
  • Android and iOS compatible;
  • Easy-to-Use Interface;
  • Available in multiple languages;
  • Remote access anytime.

Easily access reports through the mobile app:

  • Real-time display of your electrical network status;
  • Easy-to-read charts and graphs;
  • 30-day data history;
  • Report export and sharing capabilities.

---

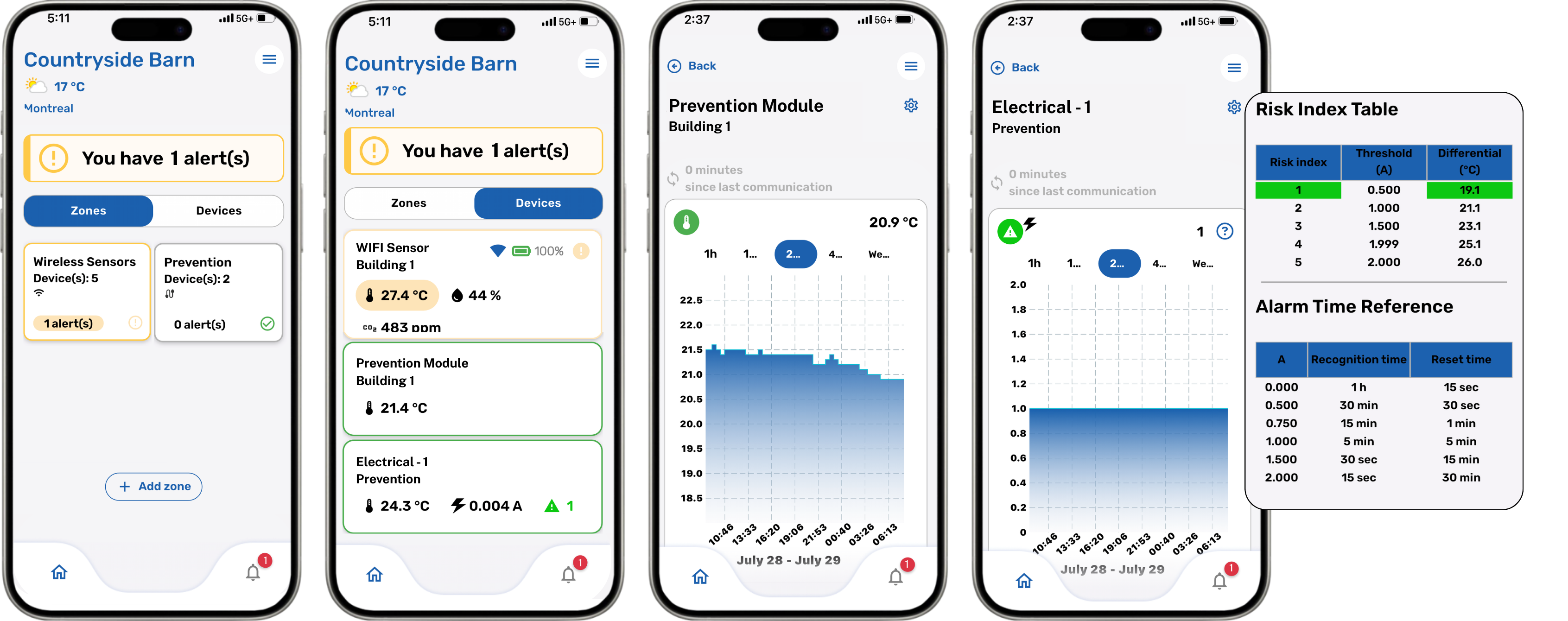

The graph on the third phone displays the temperature of the Prevention module.

The graph on the fourth phone shows the current differential.



Electrical Network Monitoring – Mobile application

Connectivity

  • Reliable Ethernet connection;
  • Communication via the Modbus protocol.

Prevention Module

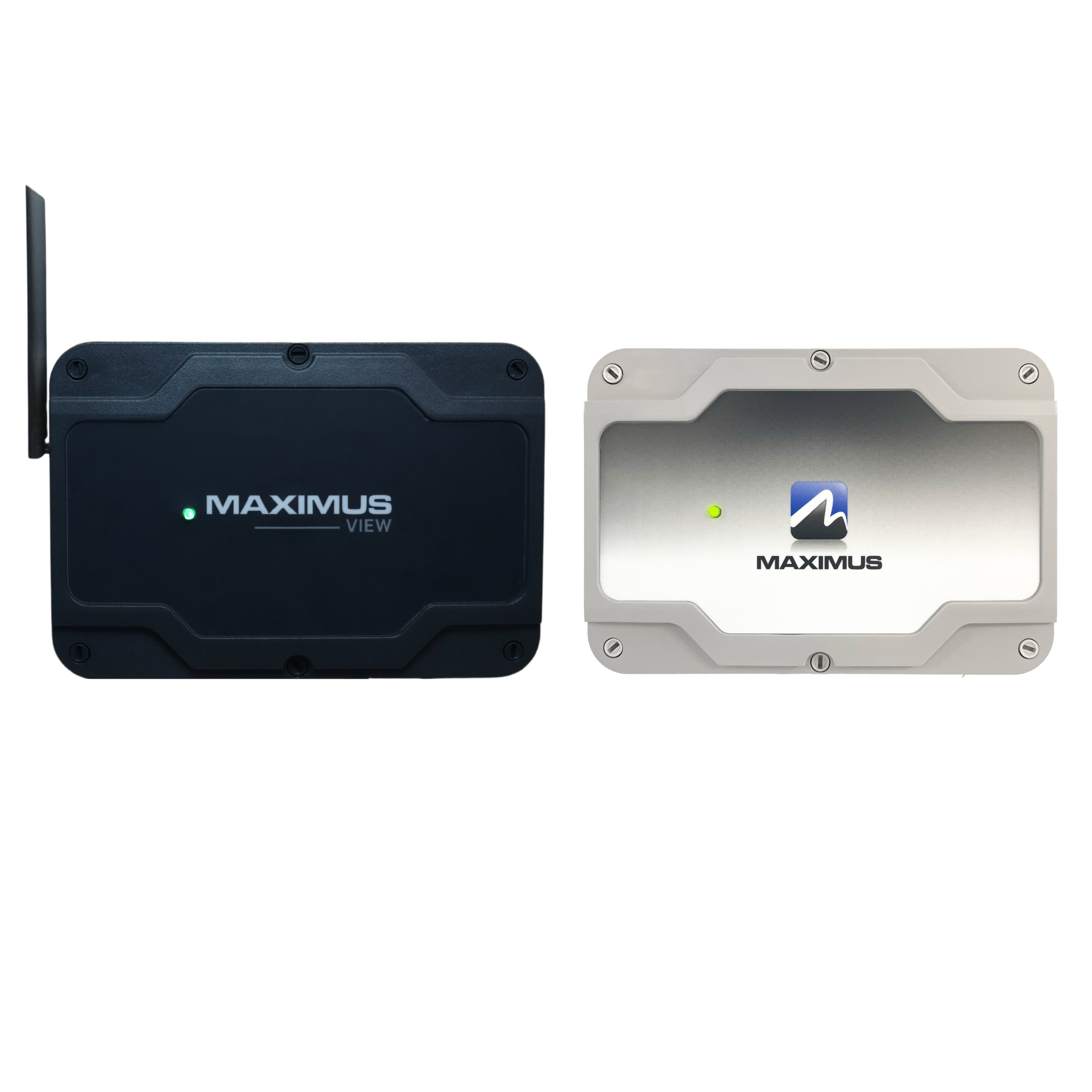

Module used for electrical network monitoring. It collects data from the sensors and current transformers and transmits it to the MAXIMUS View Premium gateway.



MAXIMUS View Premium

MAXIMUS View Premium is a smart monitoring ecosystem that provides information on environmental metrics through wireless and/or wired devices, and a gateway.



Current Transformer

The use of a current transformer allows current to be measured without modifying or interrupting the electrical circuit, thereby preserving its integrity. In the monitoring module, a current transformer is installed around each conductor. This enables the monitoring module to measure both line current and neutral current.



Temperature Sensor

Each electrical panel is equipped with a wired temperature sensor. The data collected is transmitted to the MAXIMUS Prevention odule, which then forwards all information to the MAXIMUS View gateway. If the temperature of one or more electrical panels exceeds or fails to meet the established parameters, you will receive a notification.

An integrated sensor within the MAXIMUS Prevention module measures the room temperature of the room where the electrical panels are installed. The addition of this sensor significantly reduces false alarms. The system calculates the temperature differential between the temperature of the room and inside the electrical panels. Based on the configured thresholds and settings, an alert is triggered when the observed difference exceeds established limits. Users can also adjust these thresholds in accordance with the requirements or recommendations of their insurance provider.

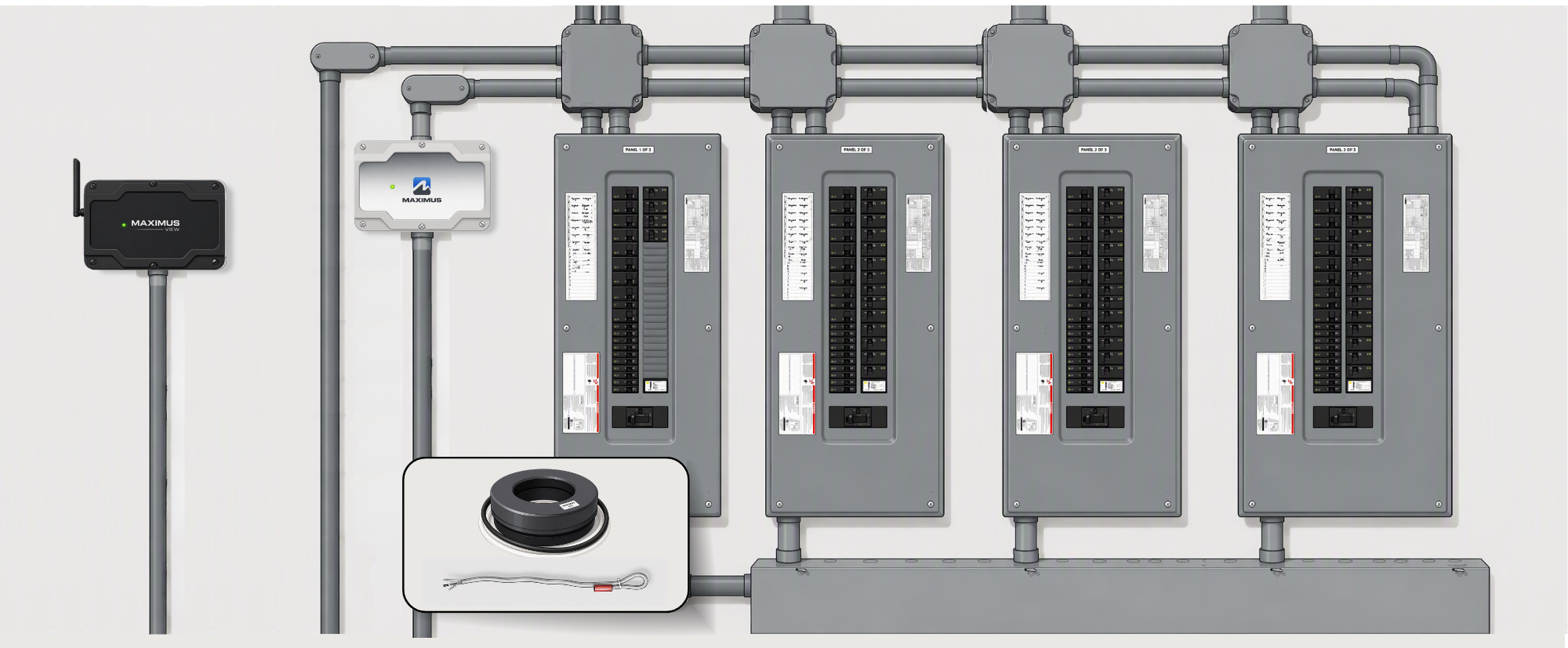

Electrical Network Monitoring - MAXIMUS View Premium Solution - Required Equipments

MAXIMUS offers two insurer-certified solutions for electrical network monitoring. The table below highlights the key features of the Prevention module when connected to the MAXIMUS controller or MAXIMUS View Premium.







Prevention Module for controller

Prevention Module for MAXIMUS View Premium

Monitoring of electrical panels

x

x

Number of electrical panels per module

Up to 4 panels

Up to 4 panels

Current measurement of equipment connected to the controller

x



Real-time alerts

x

x

Notifications

  • WhatsApp
  • SMS
  • Email

  • Email
  • Mobile application

Web application

x



Wireless sensors (CO₂, temperature, humidity, water meter)



Up to 20 sensors*

Wired sensors (ORP, chlorine, salinity, pH, electrical conductivity/salinity)

x

(Maximum of
10 wired sensors)

Reports and graphs

x

x

Data history

±4 years**

30 days

Equipment automation (provided by the controller)

x



Remote equipment start/stop (provided by the controller)

x



Warranty

5 years

1 year

Installation by a certified electrician

x

x

Certificate for insurance companies

x

x

* If an installation includes both wired and wireless sensors, a maximum of 20 sensors can be connected, including a maximum of 10 wired sensors.

** For the controller, the number of years may vary depending on the number of functions integrated into the controller.

7000-0069

PREVENTION MODULE - 1 INPUT

7000-0070

PREVENTION MODULE - 2 INPUTS

7000-0071

PREVENTION MODULE - 3 INPUTS

7000-0072

PREVENTION MODULE - 4 INPUTS

7000-0074

PREVENTION MODULE - 1 INPUT, SPLIT CORE 2x3 PO ID

7000-0075

PREVENTION MODULE - 2 INPUTS, SPLIT CORE 2x3 PO ID

7000-0076

PREVENTION MODULE - 3 INPUTS, SPLIT CORE 2x3 PO ID

7000-0077

PREVENTION MODULE - 4 INPUTS, SPLIT CORE 2x3 PO ID

7000-0078

PREVENTION MODULE - 1 INPUT, SPLIT CORE 1.25 PO ID

7000-0079

PREVENTION MODULE - 2 INPUTS, SPLIT CORE 1.25 PO ID

7000-0080

PREVENTION MODULE - 3 INPUTS, SPLIT CORE 1,25 PO ID

7000-0081

PREVENTION MODULE - 4 INPUTS, SPLIT CORE 1.25 PO ID



Dimensions: 300 x 205 x 105 mm

Poids: ~1,3kg
