This electrical network monitoring module is a complementary device connected to the MAXIMUS controller. It incorporates proven technology that quickly identifies electrical anomalies, which are often among the leading causes of farm fires. In addition to continuously monitoring temperatures inside electrical panels and comparing them to ambient temperature, the MAXIMUS Prevention module detects leakage currents caused by equipment-related issues or faults in the electrical installation.
Benefits:
Because this module is connected to the controller, you benefit from a complete management solution that also allows you to control and automate your equipment.
----
For electrical network monitoring without the need for a controller, discover the MAXIMUS View Premium solution.

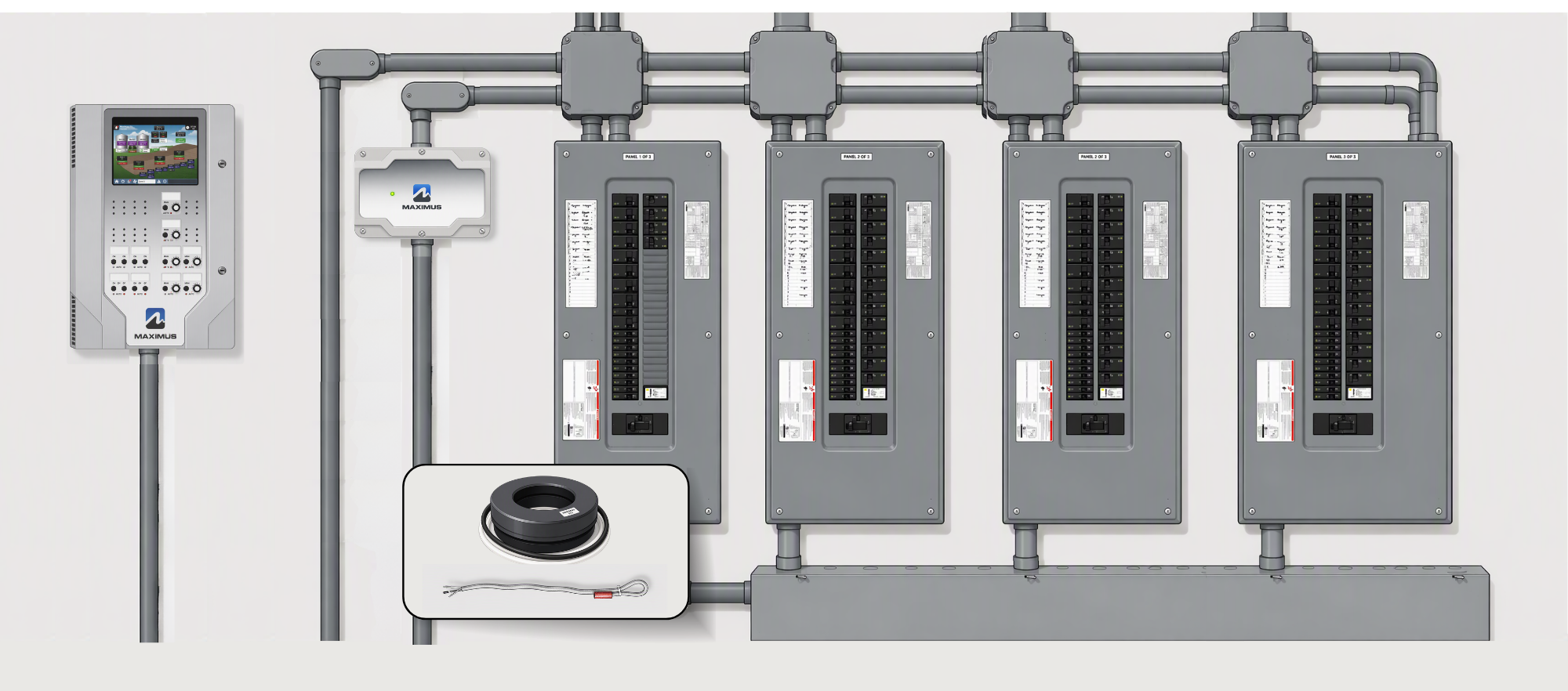

Installation is performed by a certified electrician. One Prevention module can monitor up to four electrical panels.
24/7 electrical network analysis detects electrical anomalies and helps minimize equipment downtime.
Customizable thresholds make it possible to quickly identify situations that may pose a risk to your equipment or facilities.
Alerts are sent via SMS, WhatsApp, and/or email. Our solution enables immediate response and helps ensure optimal operational continuity.
With a single click, you can remotely view the status of your electrical network and access all your data through a simple, intuitive interface.
A system that is always up to date, with free software updates provided by MAXIMUS.
A certificate of operation is issued to confirm that the system was fully operational at the time of inspection.
Simplified view with color-coded indicators;

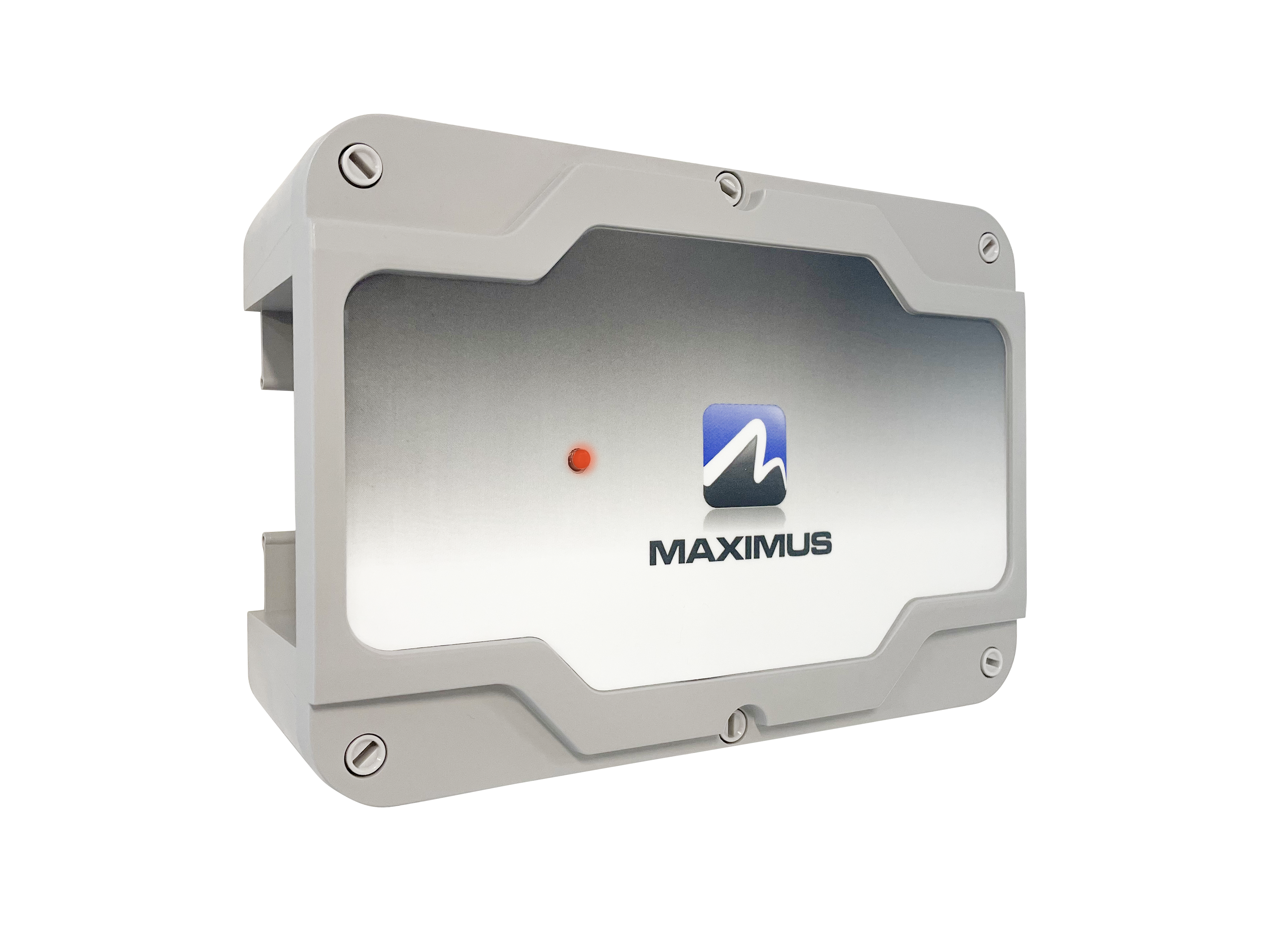

Module used for electrical network monitoring. It collects data from the sensors and current transformers and transmits it to the MAXIMUS controller.

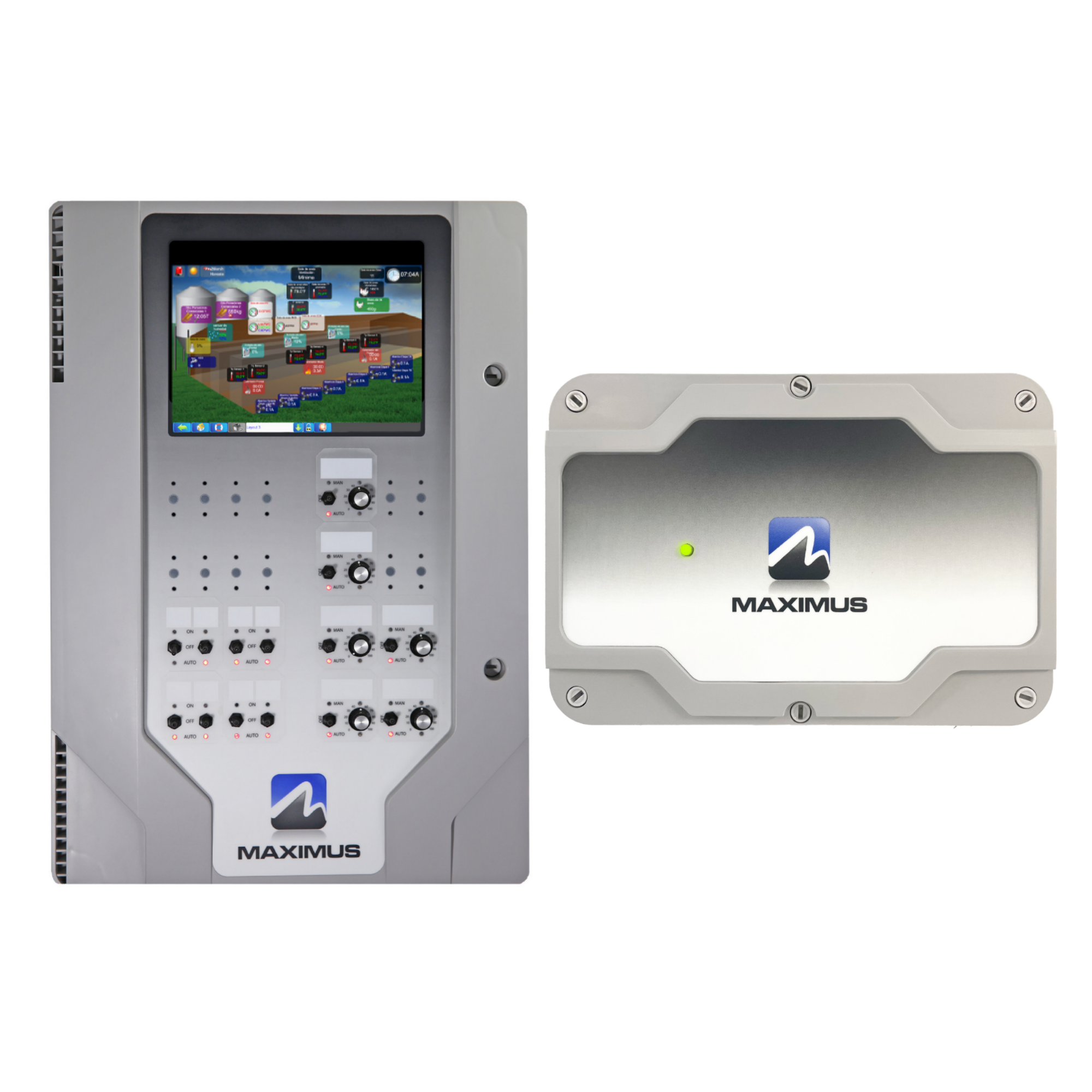

The Maximus controller is a centralized system that simplifies the management of your faming facilities by automating equipment and managing environmental conditions.
The use of a current transformer allows current to be measured without modifying or interrupting the electrical circuit, thereby preserving its integrity. In the monitoring module, a current transformer is installed around each conductor. This enables the monitoring module to measure both line current and neutral current.
Each electrical panel is equipped with a wired temperature sensor. The data collected is transmitted to the MAXIMUS Prevention module, which then forwards all information to the controller. If the temperature of one or more electrical panels exceeds or fails to meet the established parameters, you will receive a notification.
An integrated sensor within the MAXIMUS Prevention module measures the room temperature of the room where the electrical panels are installed. The addition of this sensor significantly reduces false alarms. The system calculates the temperature differential between the temperature of the room and inside the electrical panels. Based on the configured thresholds and settings, an alert is triggered when the observed difference exceeds established limits. Users can also adjust these thresholds in accordance with the requirements or recommendations of their insurance provider.
Maximus offers two insurer-certified solutions for electrical network monitoring. The table below highlights the key features of the Prevention module when connected to the MAXIMUS controller or MAXIMUS View Premium.
| Prevention Module for controller | Prevention Module for MAXIMUS View Premium |
Monitoring of electrical panels | x | x |
Number of electrical panels per module | Up to 4 panels | Up to 4 panels |
Current measurement of equipment connected to the controller | x |
|
Real-time alerts | x | x |
Notifications |
|
|
Mobile application |
| x |
Web application | x |
|
Wireless sensors (CO₂, temperature, humidity, water meter) |
| Up to 20 sensors* |
Wired sensors (ORP, chlorine, salinity, pH, electrical conductivity/salinity) | x | (Maximum of 10 wired sensors) |
Reports and graphs | ±4 years** | 30 days |
Equipment automation (provided by the controller) | x |
|
Remote equipment start/stop (provided by the controller) | x |
|
Warranty | 5 years | 1 year |
Installation by a certified electrician | x | x |
Certificate for insurance companies | x | x |
*If an installation includes both wired and wireless sensors, a maximum of 20 sensors can be connected, including a maximum of 10 wired sensors.
**For the controller, the number of years may vary depending on the number of functions integrated into the controller.
7000-0069 | PREVENTION MODULE - 1 INPUT |
7000-0070 | PREVENTION MODULE - 2 INPUTS |
7000-0071 | PREVENTION MODULE - 3 INPUTS |
7000-0072 | PREVENTION MODULE - 4 INPUTS |
7000-0074 | PREVENTION MODULE - 1 INPUT, SPLIT CORE 2x3 PO ID |
7000-0075 | PREVENTION MODULE - 2 INPUTS, SPLIT CORE 2x3 PO ID |
7000-0076 | PREVENTION MODULE - 3 INPUTS, SPLIT CORE 2x3 PO ID |
7000-0077 | PREVENTION MODULE - 4 INPUTS, SPLIT CORE 2x3 PO ID |
7000-0078 | PREVENTION MODULE - 1 INPUT, SPLIT CORE 1.25 PO ID |
7000-0079 | PREVENTION MODULE - 2 INPUTS, SPLIT CORE 1.25 PO ID |
7000-0080 | PREVENTION MODULE - 3 INPUTS, SPLIT CORE 1,25 PO ID |
7000-0081 | PREVENTION MODULE - 4 INPUTS, SPLIT CORE 1.25 PO ID |
Every solution is tailored to your operational requirements. Contact us to learn more about the available options.
Dimensions: 300 x 205 x 105 mm (11.81 x 8.07 x 4.13 inches)
Weight: ~1,3kg
